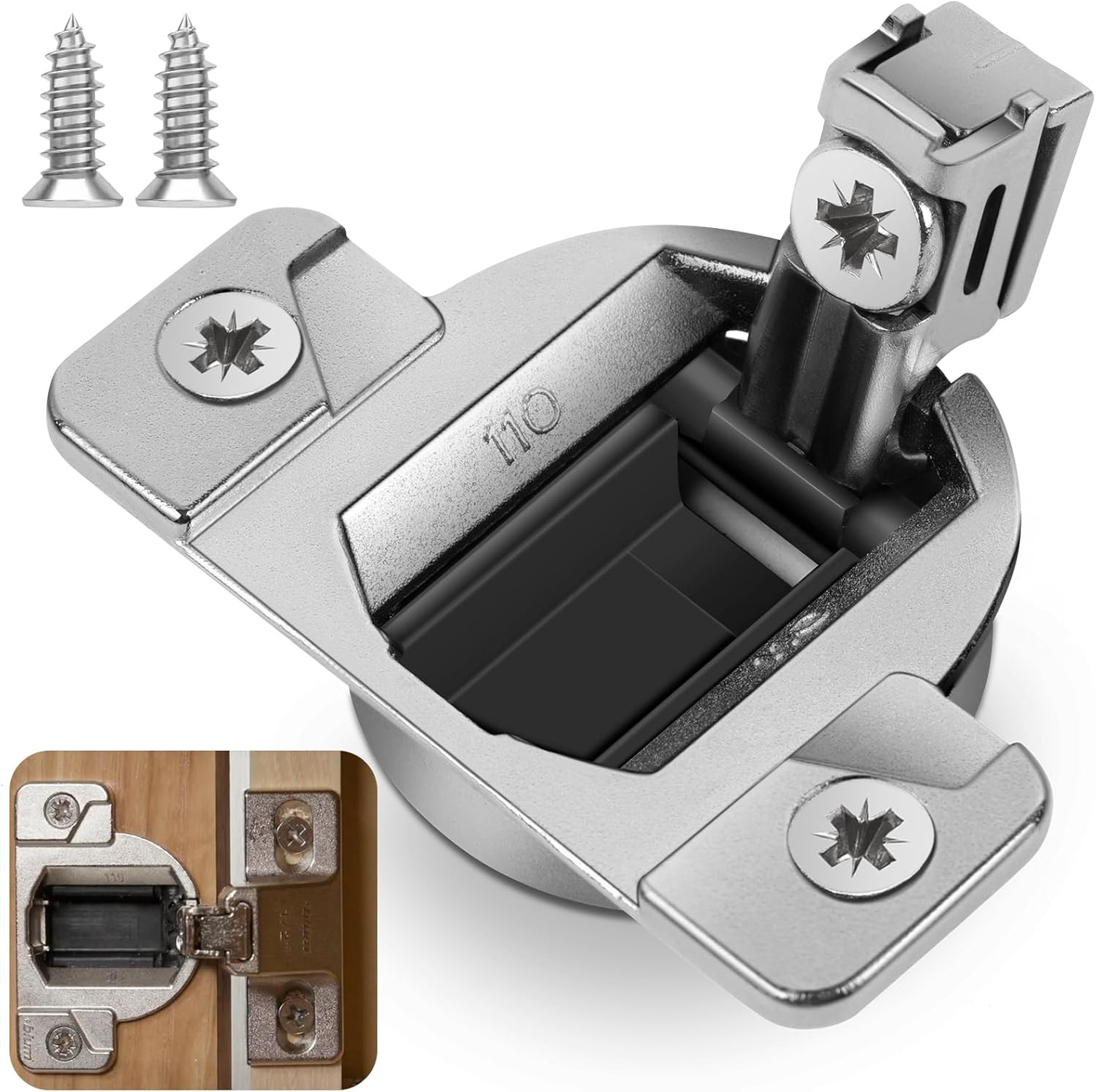

8 PCS Replacement for 30.310-11.02 Blum Cabinet Hinges, 110 & 120

• Store
• New Arrivals
• Add to Favorite
• View Feedback
• Contact

8 PCS Replacement for 30.310-11.02 Blum Cabinet Hinges, 110 & 120 Degree Screw on Self Closing, 33.3600 Compact 31 & 33 Hinge(Mounting Plate Not Included) Include Wood Screws Lifetime Replacement Description Item model number Replacement for blum 30.310-11.02 hinges Unit Count 8.0 Count Style 8 PACK Finish Nickel Plating Hole Count 2 Mounting Type Face Mount Part Number 30.310-11.02 Cabinet Hinges Color Silvery White Brand Aituzero Material Plastic, Zinc Batteries Required? No Item Weight 13.1 ounces Manufacturer Aituzero Batteries Included? No Item Package Quantity 1 Number Of Pieces 8 Finish Type Nickel Plating Product Dimensions 2.25"L x 1.45"W Included Components 16 * #6 x 5/8" Wood Screws, 8 * Replacement for 33.3600 blum Cabinet Hinges

• IMPORTANT NOTICE: This hinge is a direct replacement for older Blum Compact 31 hinges; however, the screw hole locations are different. When replacing an old-style hinge, re-drilling of the small wood screw holes is required. The new screw hole positions will not interfere with the original holes. Additionally, the mounting plate is not included. Please check hinge version, borehole location, and compatibility before purchasing or installation.
• Concealed Compact 33 Hinge: Modernize your kitchen cabinets with the concealed replacement for blum 30.310-11.02 hinges to create a seamless design and a new smooth functionality and feel. It's important to ensure your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you'll be amazed at the big difference a small upgrade can make.
• Compatibility: This hinge replace old blum compact 31 & blum 120 hinge and perfectly fit for blum compact 33 & 31 edge mounting plates: 1/4 inch (130.1100.24), 1/2 inch (130.1100.23), 5/8 inch (130.1100.26), 3/4 inch (130.1100.22), 1 inch (130.1110.02), 1-1/8 inch (130.1120.02), 1-1/4 inch (130.1130.02), 1-3/8 inch (130.111140.02), 1-1/2 inch (130.1150.02), 1-5/8 inch(130.1160) and face frame edge mounting plates (133.0240). NOTE: The old style's hinge (blum compact 31 hinge) and the new style's mounting holes are different. You may need to drill two new holes. This 30.310-11.02 cabinet hinge also replaces 32.160-01.01, 30.460, 32.160, 32.460, 32.260, 30310-1102, 30.310, PA66.
• Up to 30 Years of Service Life: The replacements for blum 30.310-11.02 hinges are crafted from ultra-hard, high-density PA plastic, which provides exceptional impact resistance. This material effectively withstands daily collisions and wear, significantly extending the hinges' service life. And the hinges have successfully passed over 100,000 opening & closing cycles without experiencing issues like plastic breakage or cracking. Additionally, the heavy-duty Zamak zinc alloy ensures robust, reliable structures, offering outstanding durability&strength. Nickel-plated surface layers further enhance corrosion resistance, ensuring smooth hinge operation & prolonging their overall lifespan.
• Easy to Install: The replacement for blum cabinet hinges features an easy-to-install screw-on design and is compact, fitting snugly into the cabinet’s blum mounting plate without taking up too much space.It offers a wide 110-degree opening angle for easy access to the cabinet contents. Additionally, the 30.310-11.02 cabinet hinges come with two #6 x 5/8" wood screws (606N or 606P), making installation more convenient. You can follow the installation steps through a YouTube video, which takes only about 20 minutes. NOTE: This package includes the 30.310-11.02 cabinet hinges only(Mounting plate Not included). Please ensure you determine your door's overlay before purchasing a mounting plate.
• Parameter: Designed for doors with a thickness: 16 mm to 19 mm；Opening Angle: 110; Closing Mechanism: with spring; Hinge Cup Assembly: screw-on; Cup Diameter: 1-3/8"; Bore Distance Min/Max: 2.5", 3"; Cup Depth: 1/2"; Mount Centers: 1-3/4"; Bore Distance (the distance from the edge of the 35mm cup to the edge of the door): 1/8"； Side to Side Adjustment: plus or minus 1/8"; Height Adjustment: plus or minus 9/64"
• Lifetime Free Replacement: You don’t need to worry about the replacement for blum cabinet hinges failing within a few months. We offer a lifetime free replacement guarantee. If you have any questions or issues, please contact us through “Ask a Question” or email on our store homepage. We promise to provide a satisfactory solution within 12 hours, ensuring a worry-free user experience.
